FILTRATION

PARTICULATE FILTRATION

Reduce contamination in your air stream up to 10000 scfm; Ingersoll Rand's particulate filtration options feature patented dual indicators which display differential pressure drop and operating efficiency, a rugged aluminum die cast design, easy maintenance, and a long element life. General Purpose; 1 Micron, High Efficiency .01 Micron, Activated Carbon Vapor.

cq5dam.thumbnail.900.760 (1).png
INGERSOLL RAND NL Module Coalescing Filt

NLM COALESCING LIQUID/OIL FILTRATION

For applications requiring ultra high quality air, conventional filters' mechanical separation mechanisms are not effective on small liquid aerosol particles. Ingersoll Rand's coalescing filtration options eliminate submicron liquid particles in the air and gases (to 0.5 ppm, > 3 microns at 100%, between 0.1 to 3 microns at 99.98%).

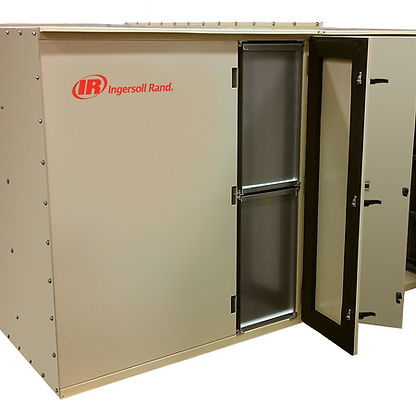

CHEMICAL AIR FILTRATION

Ingersoll Rand has developed the Pure Air Chemical Filtration System to remove corrosive gases such as sulfur dioxide (SO2) and hydrogen sulfide (H2S), preventing corrosion of your system's vital internal components. This muti-stage chemical purification system was made to protect and extend the life of sensitive compressed air systems and minimize critical downtime.

INGERSOLL RAND CHEMICAL FILTER.jpg
ECO-SPIN Inertial Spin Filter .jpg

HIGH DUST PACKAGE INTAKE FILTRATION

Heavy-duty requirements, where there is a high concentration of airborne particulate in the atmosphere, require thoughtful filtration solutions to protect your compressed air system and optimize efficiency. The  ECO-SPIN intake filtration system (pictured) utilizes inertial spin technology to remove large particulate (98% @ 15μm) from the incoming air stream to preserve the on-stream service life of downstream filtration elements. Air Systems can include options like this, and more, with your new build, or upgrade your existing system.
